Capsule Type Stereo MS Electret Condenser
Frequency Response Stereo: 50 Hz to 20 kHz
Frequency Response Monaural: 40 Hz to 20 kHz
Directivity Stereo: Uni-directional
Directivity Monaural: Super-cardioid
Sensitivity *[1] Stereo: -28 dB ±3 dB
Monaural: -32 dB ±3 dB
Output Impedance *[2] 100O±20%, Balanced
Dynamic Range Stereo: 104 dB or more
Monaural: 106 dB or more
Signal-to-Noise Ratio *[3] Stereo: 74 dB or more
Monaural: 76 dB or more
Inherent Noise *[4] Stereo: 21 dB SPL or less
Monaural: 20 dB SPL or less
Induction Noise From External Magnetic Field *[5] 0 dB SPL or less
Wind Noise *[6] 60 dB SPL or less (with windscreen), 55 dB SPL (without windscreen)
Maximum Input Sound Pressure Level *[7] 124 dB SPL

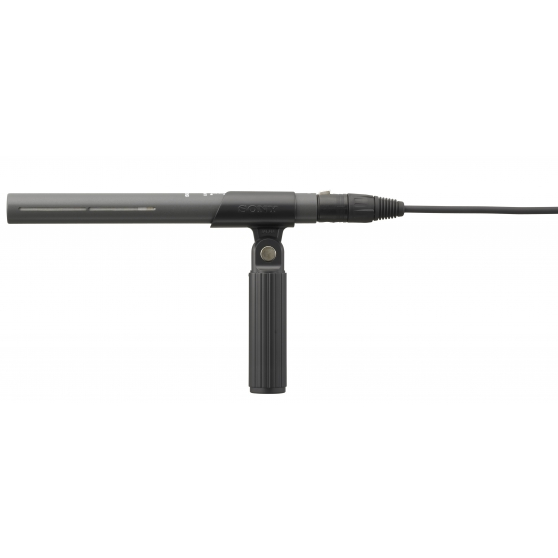

The short cable supplied with the ECM-680S Stereo Shotgun Mic can be used for connection on camcorders with a 5-pin XLR input
The optional EC05X5F3M (formally known as K-1504) short cable can be used to connect the ECM-680S stereo shotgun on camcorders with two 3-pin XLR inputs
